Harbour installation, Eemshaven, Netherlands
Julianahaven in Eemshaven, Netherlands

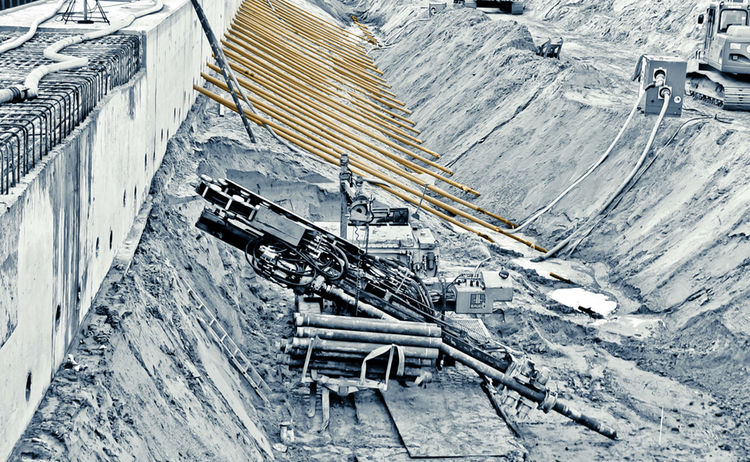

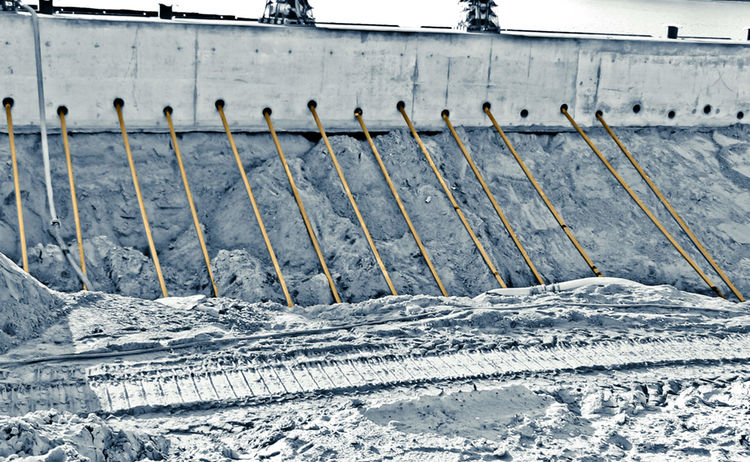

Establishing of a permanent anchorage construction for the harbour installation
N. Kraaijeveld B.V.
October 2006 - January 2007
BAUER Funderingstechnieken BV, Mijdrecht, Netherlands
Scope of supply:
540 pcs. of thread bars SAS 670/800 Ø 75 mm with a total weight of 370 tons for the anchorage system, 1,080 pcs. of required accessories, like anchor nuts and lock nuts as well as coupling splices

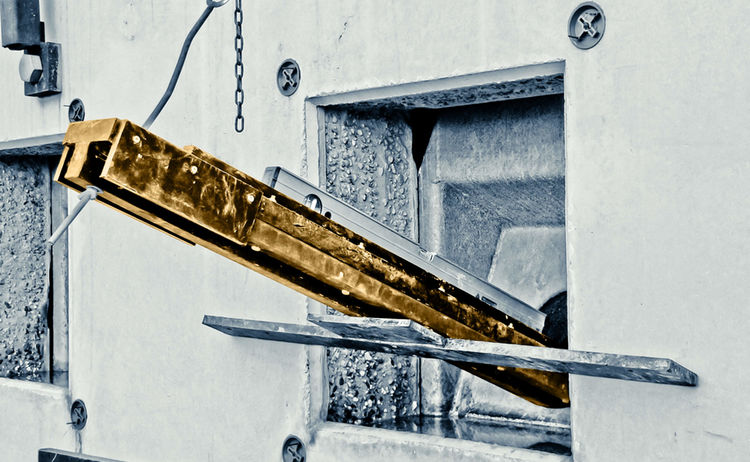

Concerning to the aggressive environment conditions the long term durability will be ensured by a double corrosion protection assembly. Therefore the SAS thread bar is placed in a corrugated sheathing pre-grouted. So the SAS System can also be used for tensile loading in a durable application.
