Torre Lotte de Seúl, Corea del Sur
SISTEMAS SAS: SISTEMAS DE REFUERZO
Proyecto:
Torre Lotte de Seúl, Corea del Sur.
Tiempo de construcción:
2010 - 2015 (previsto)
Cliente:
Lotte Engineering & Construction, Seúl, Corea del Sur
Proveedor:
SAS Asia Bar Systems
Volumen de suministro:
600 toneladas de barras roscadas de acero para sistemas de armadura de alta resistencia SAS 600/680 de 50 mm de diámetro,
8.140 manguitos y 488 manguitos especiales para la transición de acero tradicional de refuerzo a barras roscadas de acero SAS 600/680
Aplicación:

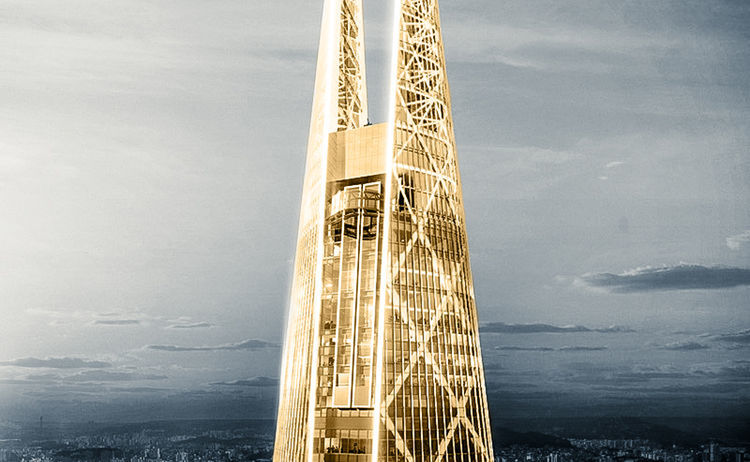

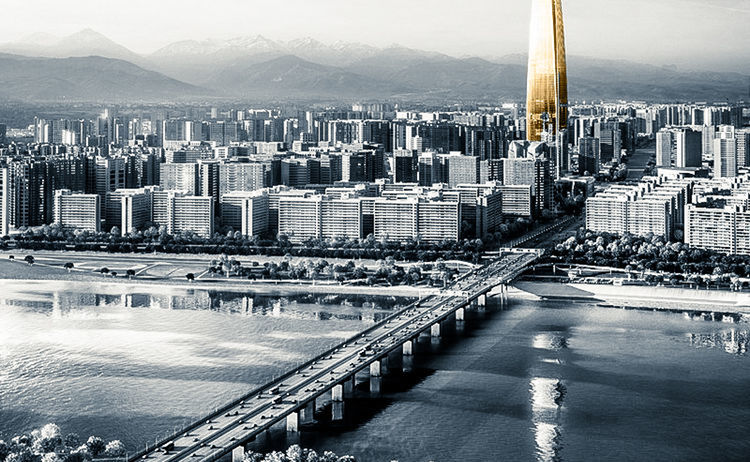

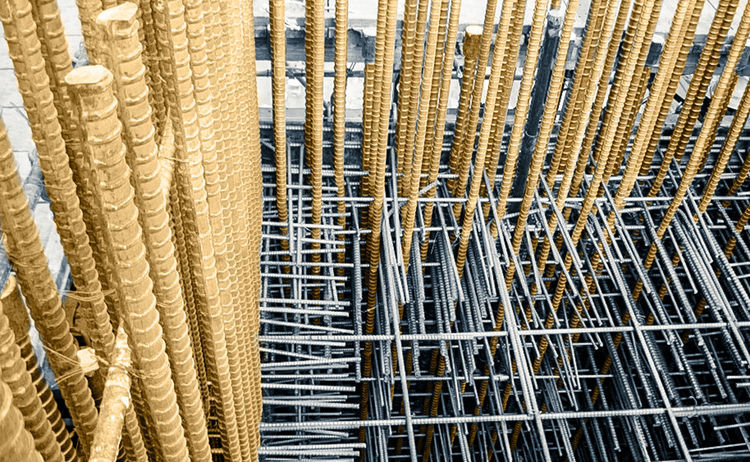

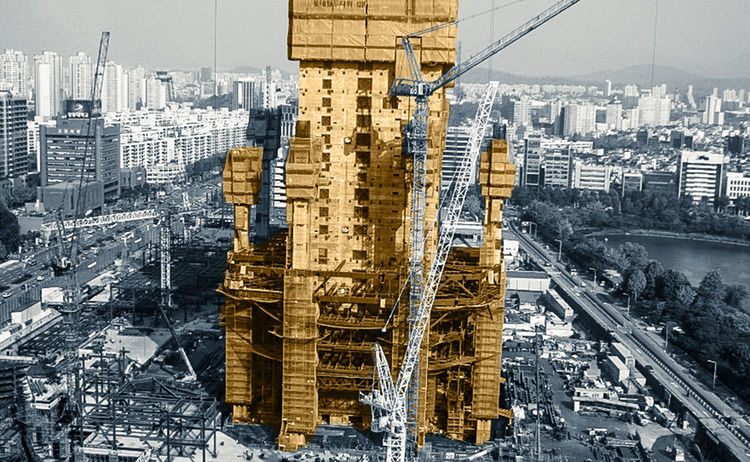

La torre Lotte es actualmente, con sus 555 m y junto a su plataforma panorámica, situada a una altura de 497,6 m, el segundo edificio más alto de Asia. Dispone de un total de 123 plantas. De ellas, 6 bajo tierra a modo de aparcamiento; las plantas 1 a 6 para tiendas; las plantas 7 a 60 para uso de oficinas; las plantas 61 a 85 para apartamentos; las plantas 86 a 119 para un hotel de lujo, y las plantas 120 a 123 para uso público con la plataforma panorámica. Las barras roscadas SAS se encuentran en los refuerzos verticales y longitudinales de los 8 megasoportes. Las barras roscadas SAS 600/680 se han desarrollado y homologado especialmente para este proyecto. La empresa Doka suministra además los sistemas de encofrado tanto para los megasoportes como también para el núcleo de la estructura, por lo que se usan asimismo anclajes de encofrado SAS.
